Schalldämpfer Sechskant Basis SEB/C NPT
Füllen Sie das Formular aus, um Informationen und / oder Angebote anfordern
Maßeinheit in Millimetern

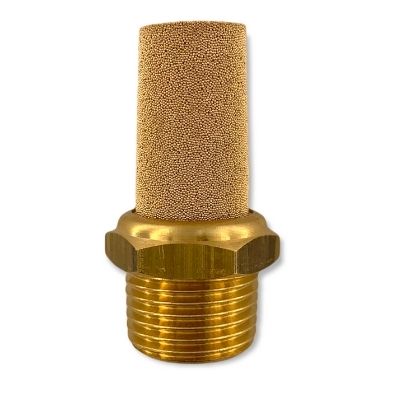

Konischer Schalldämpfer in sphärischer Bronze gesintert geschlagen auf Sechskant Basis in Messing
Maßeinheit in Millimetern.
| Code | Produkt | A | Diam | B | C | D | E | H | Ch |
| 121/NPT | SEB/C 1/8 NPT | 1/8" | 6,0 | 8,0 | 8,5 | 7.4 | 4,0 | 26,0 | 13,0 |
| 122/NPT | SEB/C 1/4 NPT | 1/4" | 8,5 | 9,0 | 10,5 | 10.9 | 5,0 | 34,0 | 16,0 |
| 123/NPT | SEB/C 3/8 NPT | 3/8" | 11,5 | 12,0 | 13,0 | 10.9 | 5,0 | 41,0 | 19,0 |
| 124/NPT | SEB/C 1/2 NPT | 1/2" | 15,0 | 16,0 | 18,0 | 13.6 | 6,0 | 46,0 | 24,0 |
| 125/NPT | SEB/C 3/4 NPT | 3/4" | 20,0 | 21,0 | 25,5 | 13.6 | 6,0 | 56,0 | 30,0 |
| 126/NPT | SEB/C 1 NPT | 1" | 26,0 | 26,5 | 30,5 | 15.6 | 6,0 | 66,0 | 36,0 |
| Geräuschpegel dB 6 BAR | ||||||
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | |
| 75 | 81 | 82 | 85 | |||
| Geräuschpegel dB 4 BAR | ||||||
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | |
| 70 | 75 | 78 | 81 | 83 | 84 | |

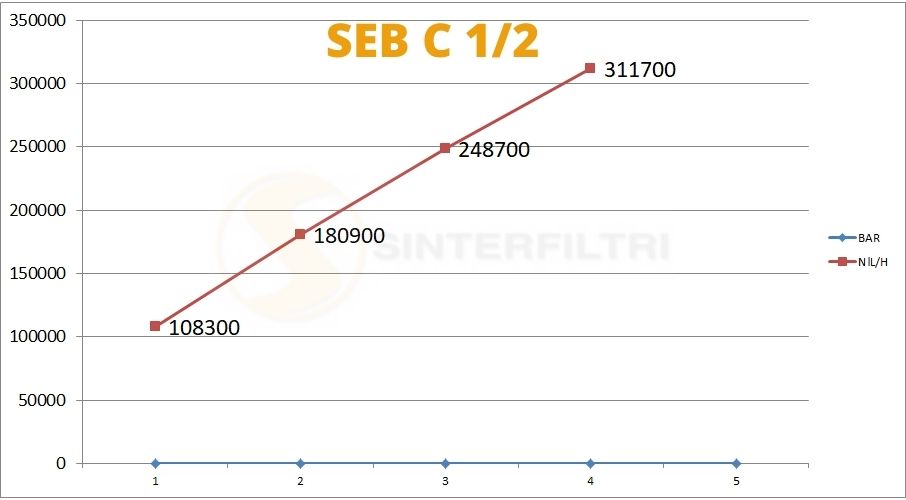

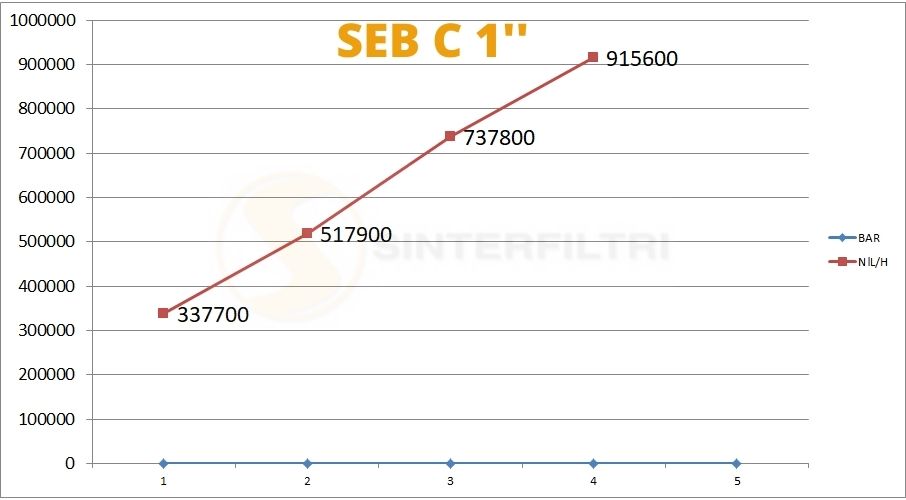

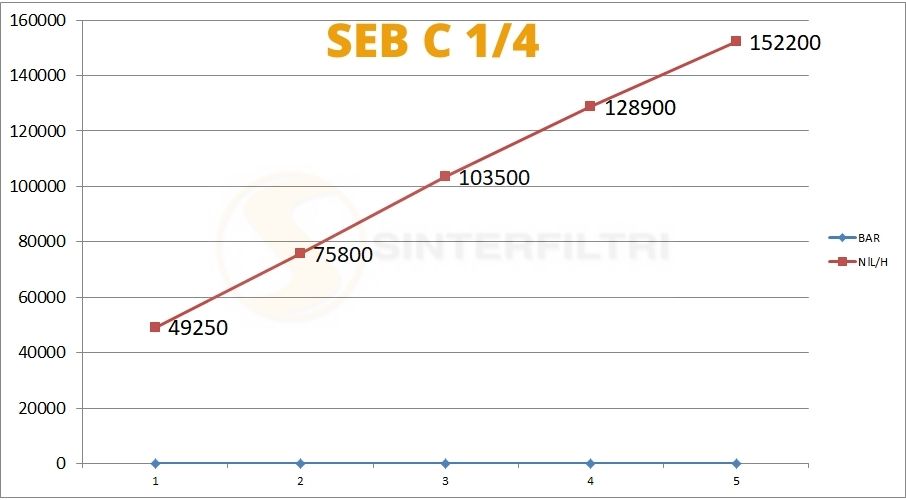

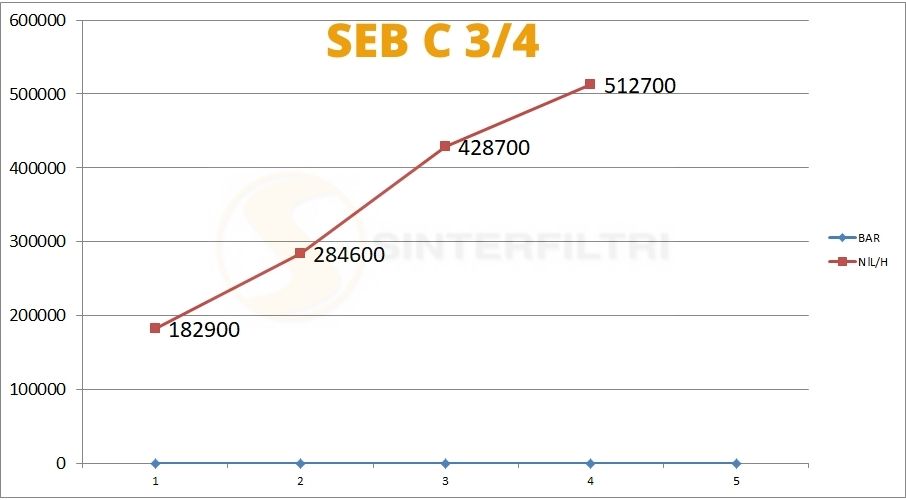

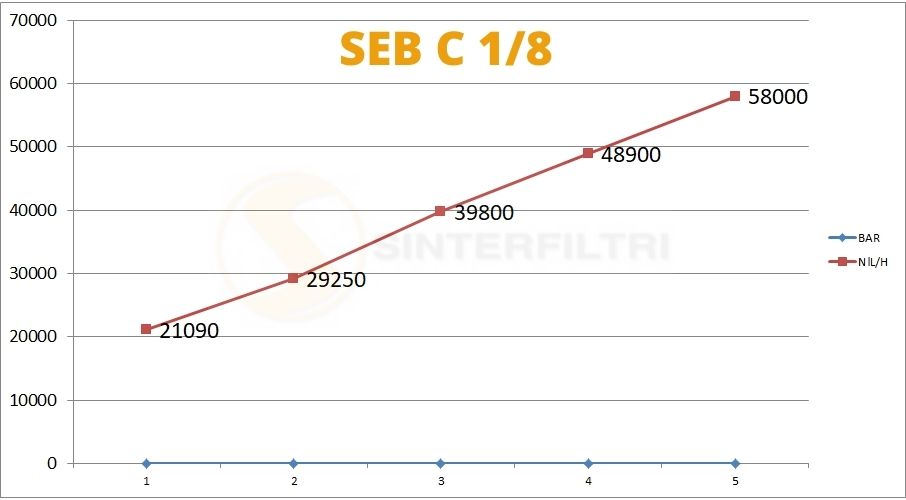

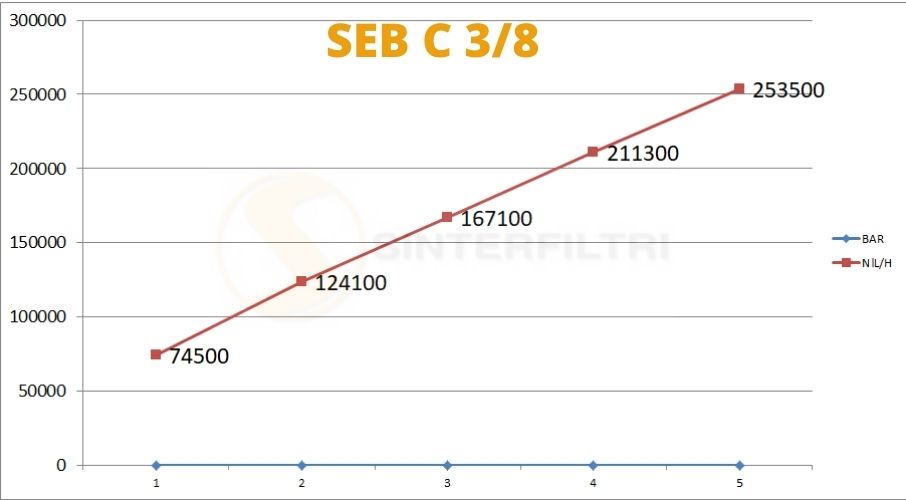

Flow-Tests
