Schalldämpfer Sechskant Basis SEB/C
Füllen Sie das Formular aus, um Informationen und / oder Angebote anfordern
Maßeinheit in Millimetern

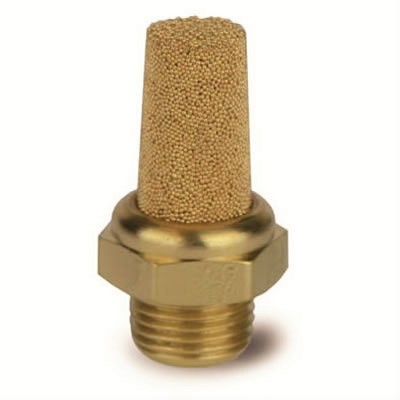

Konischer Schalldämpfer in sphärischer Bronze gesintert geschlagen auf Sechskant Basis in Messing
Maßeinheit in Millimetern.
| Code | Produkt | A | Diam | B | C | D | E | H | Ch |
| 080 | SEB/C M6 | M6 | 2,5 | 3,0 | 4,0 | 3,5 | 3,0 | 17,0 | 8,0 |
| 119 | SEB/C M7 | M7 | 3,0 | 6,7 | 7,0 | 5,0 | 3,5 | 23,0 | 10,0 |
| 120 | SEB/C M 5 | M5 | 2,5 | 3,0 | 4,0 | 3,5 | 3,0 | 17,0 | 8,0 |
| 120/M3 | SEB/C M3 | M3 | 1,1 | 3,5 | 4,5 | 5,0 | 3,0 | 18,5 | 8,0 |
| 121 | SEB/C 1/8 | 1/8" | 6,0 | 8,0 | 8,5 | 6,0 | 4,0 | 26,0 | 13,0 |
| 122 | SEB/C 1/4 | 1/4" | 8,5 | 9,0 | 10,5 | 8,0 | 5,0 | 34,0 | 16,0 |
| 123 | SEB/C 3/8 | 3/8" | 11,5 | 12,0 | 13,0 | 8,0 | 5,0 | 41,0 | 19,0 |
| 124 | SEB/C 1/2 | 1/2" | 15,0 | 16,0 | 18,0 | 10,0 | 6,0 | 46,0 | 24,0 |
| 125 | SEB/C 3/4 | 3/4" | 20,0 | 21,0 | 25,5 | 10,0 | 6,0 | 56,0 | 30,0 |
| 126 | SEB/C 1 | 1" | 26,0 | 26,5 | 30,5 | 10,0 | 6,0 | 66,0 | 36,0 |
| Geräuschpegel dB 6 BAR | ||||||
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | |
| 75 | 81 | 82 | 85 | |||
| Geräuschpegel dB 4 BAR | ||||||
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | |
| 70 | 75 | 78 | 81 | 83 | 84 | |

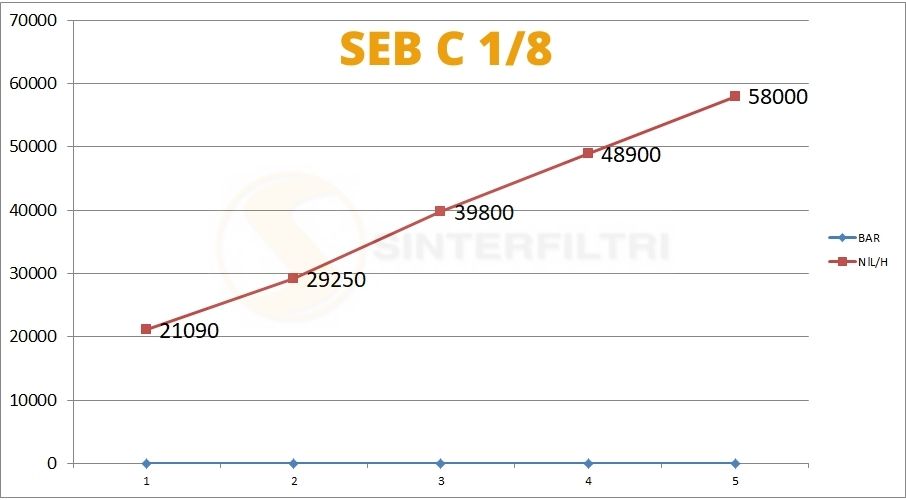

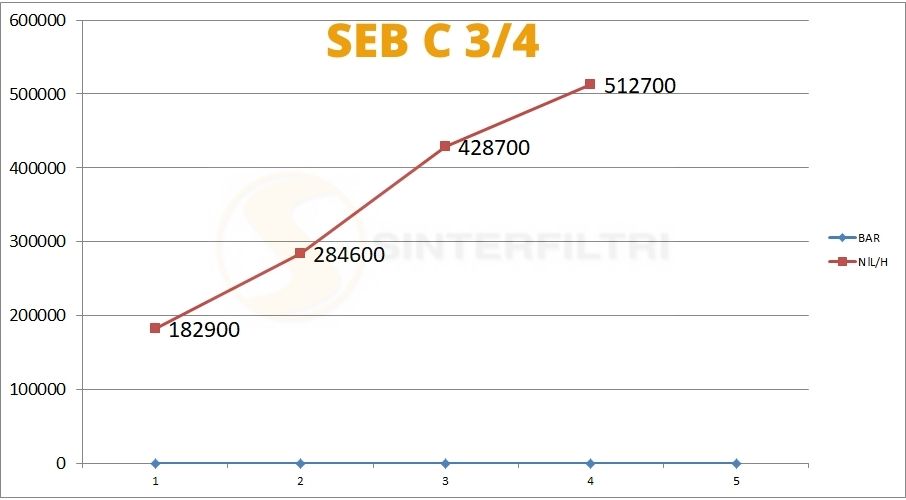

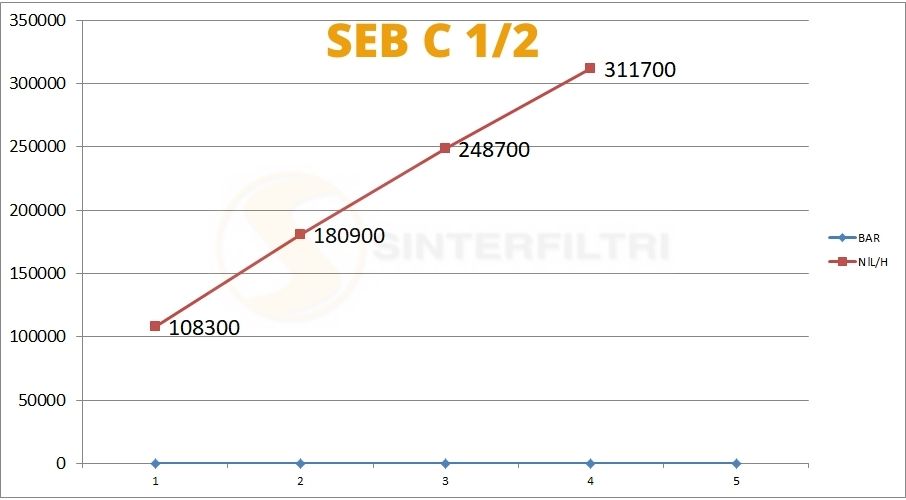

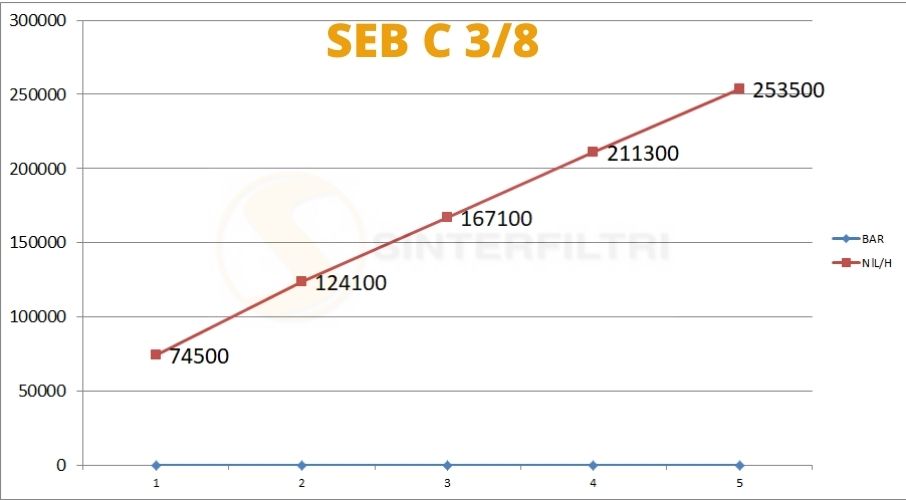

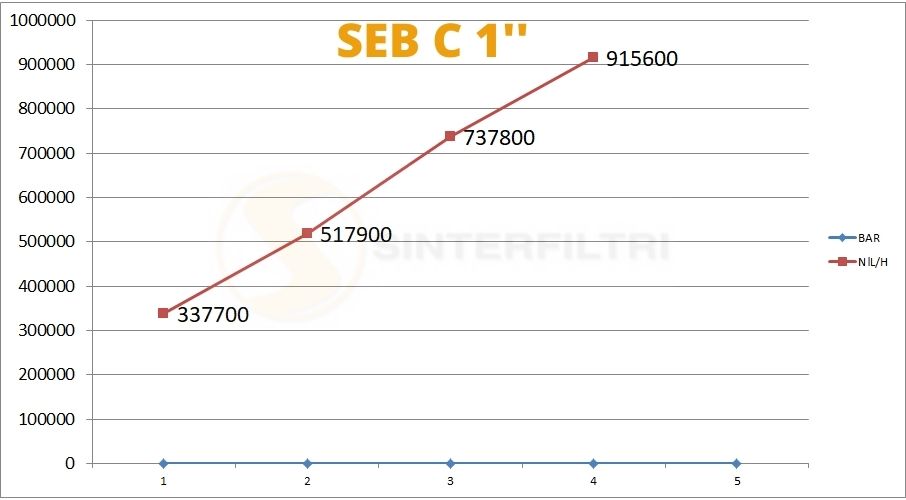

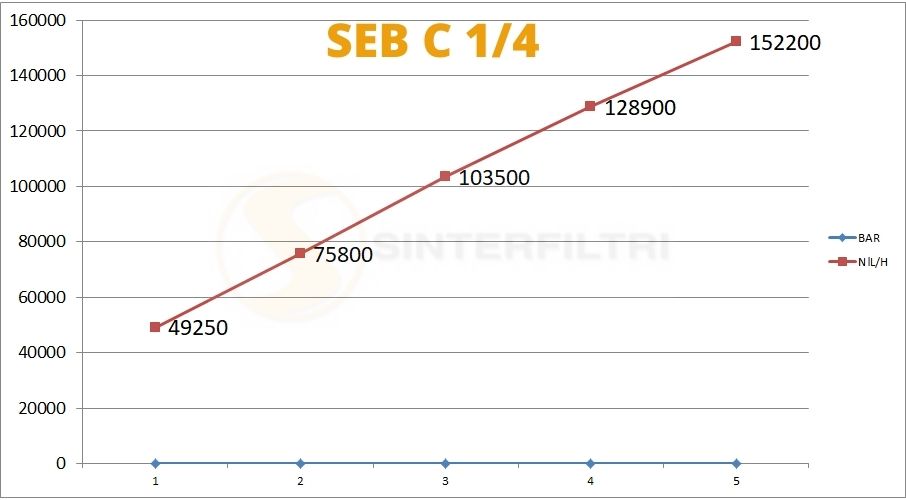

Flow-Tests
